Vian Power Retrofit Kit (Replacement Kit). 1 Pump + air
Vian Power Retrofit Kit (Replacement Kit). 1 Pump + air
Precio: 803,03 € ex. IVA
(963,64 € inc. IVA)
Codigo del articulo: PK-VP612

Estado del stock en tiempo real: 5 disponible, 2 - 5 dias de entrega

Agregue a la cesta:

Type of Product: Vian Power Electronic Control pack
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50
Specifications: 1 Pump + air
Compatible With: Any retrofit system, suitable for upgrades.
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions: Length: 500 mm (inc heater) 320 mm (box casing only) Width: 120 mm Height: 300 mm Topside: 178 mm x 86 mm
Topside Buttons: Overlay included 1 Pump + air

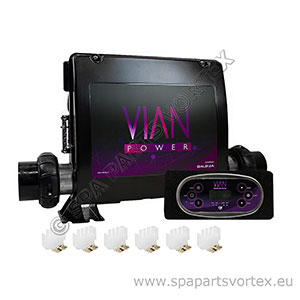

Items Included: x6 AMP connector 4 pins, x1 AMP connector 2 pins, x1 Bezel,  x1 Topside, x1 System Vian Power 3Kw 825 CZm8
Additional Notes: System Outputs:

This system has been designed to be able to run from 1 pump single speed upto 3 pumps + circ pump + blower.

setup number Circ pump Pump1 Pump2 Pump3 Blower OZONE / UV
1   2speed       YES
2   2speed     1speed YES
3   2speed 1speed     YES
4   2speed 1speed   1speed YES
5   2speed 1speed 1speed   YES
6   2speed 1speed 1speed 1speed YES

7 circ pump 2speed       YES
8 circ pump 2speed     1speed YES
9 circ pump 2speed 1speed     YES
10 circ pump 2speed 1speed   1speed YES
11 circ pump 2speed 1speed 1speed
