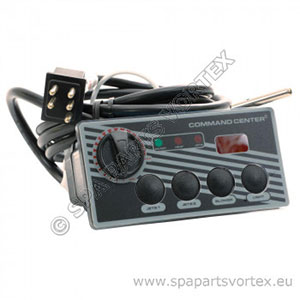

Command Centre - 4 button, 12v, display Celcius
Command Centre - 4 button, 12v, display Celcius
Precio: 595,02 € ex. IVA
Codigo del articulo: TS-TM400

Estado del stock en tiempo real: 2 disponible, 2 - 5 dias de entrega

Agregue a la cesta:

Type of Product: Topside control, touch panel or touch pad
Manufacturer: Tecmark
Power: Volts: 12
Hz:
Watts:
Amps:
HP:
Compatible With:
Button Configuration:
  • 3 choices of overlay to choose from:
  • 1. FUNCTION, LIGHT
  • 2. JETS, BLOWER, LIGHT
  • 3. JETS 1, JETS 2, BLOWER, LIGHT
Connections: 5 pin black plug.
Screens: Digital
Dimensions: Length: 165 mm
Height: 85 mm
Additional Notes: Tecmark pneumatic controllers are not often used in new systems in manufacturing today, but nether the less are still a useful and reliable application. These systems are found in Jacuzzi Spring Spa range amongst others. It comes complete with a thermostat and T probe, it uses a 5 pin plug but this can be wired to suit other applications. With 4 pneumatic buttons at hand you can simply select the most suitable overlay and then attach the air tubes for each appliance directly to the underside of each button used. It has a digital temp read out, temperature range 7-40 degrees C and operates at 12VAC.
