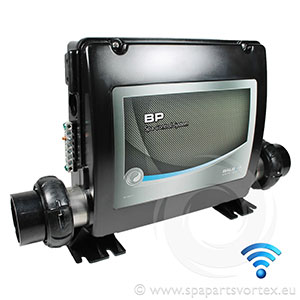

Balboa BP21P4BC Control Box
Balboa BP21P4BC Control Box
Precio: 951,50 € ex. IVA
Codigo del articulo: BX-BP214

Estado del stock en tiempo real: 4 disponible, 2 - 5 dias de entrega

Agregue a la cesta:

Type of Product: Balboa electronic control box
Manufacturer: Balboa
Power: Volts: 230vac
Hz: 50
Watts:
Amps:
HP:
Specifications:
  • Circulation Pump: Supported
  • Pump 1: Single or dual-speed
  • Pump 2: Single or dual-speed
  • Pump 3: Single-speed
  • Pump 4: Single-speed
  • Air Blower: Single-speed (if Pump 2 is single-speed)
  • Heater: 3.0 kW
  • Ozone: 1 connection
  • Light: 1 unit, 10 V
  • AV: CHZ 230 V connection available
  • Power Supply: 230 V, 50 Hz
  • Plumbing Size: 2" unions
Compatible With: Systems fitted with topside controls from Spa Touch and TP Range
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions: Length: 490 mm (inc heater) 330 mm (Box only)
Width: 120 mm
Height: 300 mm
Additional Notes:

The Balboa BP21P4BC control box with 3.0 kW heater is designed for advanced spa and swim spa setups. It supports a circulation pump, up to four pumps with single- or dual-speed options, an air blower, ozone, lighting, and AV connections. It operates on a 230 V, 50 Hz supply.
